Amplify

Adjusts the intensity of your F-Curves around a specified Pivot Point. This feature can be used to exaggerate or subdue a movement on a per-F-Curve basis.

Amplify with the default Pivot Point ‘Center’

Redo Panel

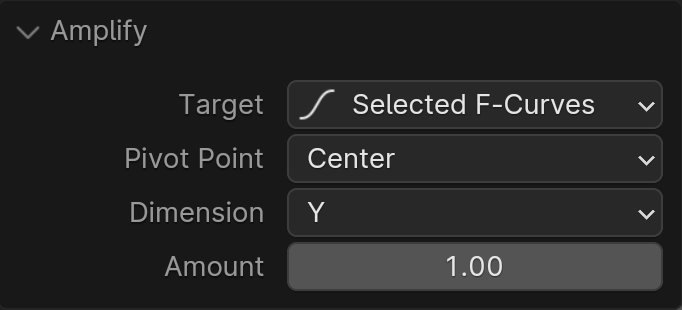

Amplify Redo Panel

Target

  • Selected F-Curves: targets selected F-Curves
  • Selected Keyframes: targets selected Keyframes

Pivot Point

  • Center: Amplify keys using each F-Curve’s center as the pivot point.
    Amplify - Center
  • First: Amplify keys using each F-Curve’s first keyframe as the pivot point.
    Amplify - First
  • Last: Amplify keys using each F-Curve’s last keyframe as the pivot point.
    Amplify - Last
  • Max: Amplify keys using each F-Curve’s keyframe with the maximum value as the pivot point.
    Amplify - Max
  • Min: Amplify keys using each F-Curve’s keyframe with the minimum value as the pivot point.
    Amplify - Min

Amount

The amount by which to amplify each F-Curve’s keyframes. 1.0 = no amplification.
